LONG FRAME 1/4" TWIN ROW JACK PANELS

204

JACK PANELS

PHONE: 773 792-2700

* Please visit the product pages on our website for the most up-to-date product information

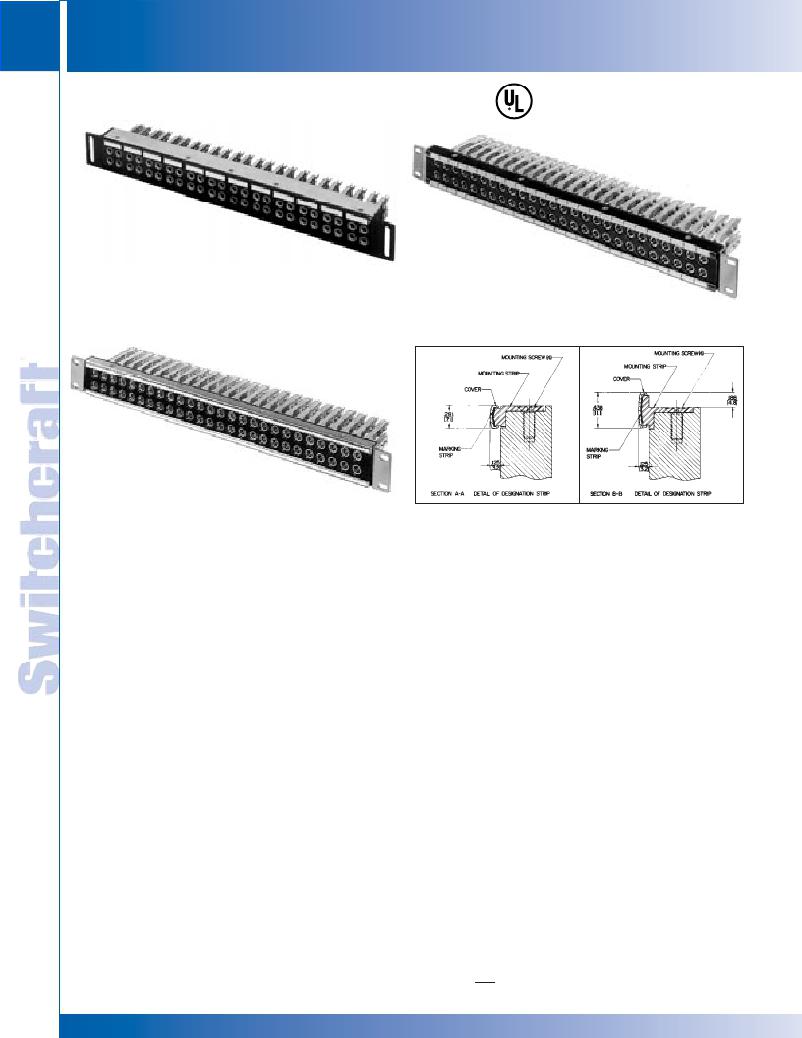

LONG FRAME (1/4") TWIN ROW JACK PANELS

Series 2400

*Shown with optional jacks,

See next page for specific

part numbers.

Series 2600

*Shown with optional jacks,

See next page for specific

part numbers.

STANDARD TWIN ROW JACK PANELS

SERIES 2400, 2600, 2600300, 2700300 – PHENOLIC

Twin row jack panels offer greater jack density - up to 52 jacks

per panel. All panels fit standard 19" wide racks. Blank panels

or standard assemblies can be ordered from Switchcraft.

Series 2600 panels are direct equivalent to WEco #230A.

SERIES 2400

Twin row panel accommodates 48 T-Jax ? . Openings are on

alternate .625" and .75" centers. Panel is 2.125" high and fits

standard 19" racks. Twin plug cannot be cross-connected

between jacks in adjacent quads, but may be connected either

horizontally or vertically in the same quad. Single designation

strip.

SERIES 2500

Same as Series 2400 except MT-Jax ? are used.

SERIES 2600

Twin row panel accommodates 52 T-Jax ? in standard 1.75" x

19" racks. Jack openings are on continuous centers. Twin plug

can be connected to any two adjacent jacks, either horizontally

or vertically. Two designation strips. WEco equivalent is #230A.

SERIES 2600300

Same as Series 2600, except designation strips are

Kwik-Change ? type, providing larger vertical marking area. Top

strip holder is recessed into top of panel to provide additional

Series 2600301

*Shown with optional jacks,

See next page for specific

part numbers.

strength. 2600301 has single height designation strips (one

above and below each row of jacks).

2600310

Has a double height strip above top row and a steel reinforcing

strip below bottom row. Top strip has .188" overhang above

1.75" panel height, helping seal the small opening between

adjacent panels. Note: overhang prevents mounting panel one

above another in a rack.

SERIES 2700

Same as Series 2600 except MT-Jax ? are used in panel

assemblies. The series is available with cable tie bar.

ORDERING

1. Order basic panels and popular assemblies by part number

from table.

2. For special panels provide complete details with your inquiry

or order.

3. Series 2600 is available with hole pre-drilled for vertical

designation strips, Series DS320. Add prefix “D” to part

number (D2600301, etc.).

4. Jack Mounting Screws: #6-32, P10725, can be ordered

separately. Contact Switchcraft.

DIMENSIONS ARE FOR REFERENCE ONLY

www.switchcraft.com

Inch

(mm)

? Registered trademark of Switchcraft, Inc.

Note: Contact your Switchcraft Representative for price and delivery
